TEMS 49

Budu se zde výhradně věnovat technickým prostředkům.

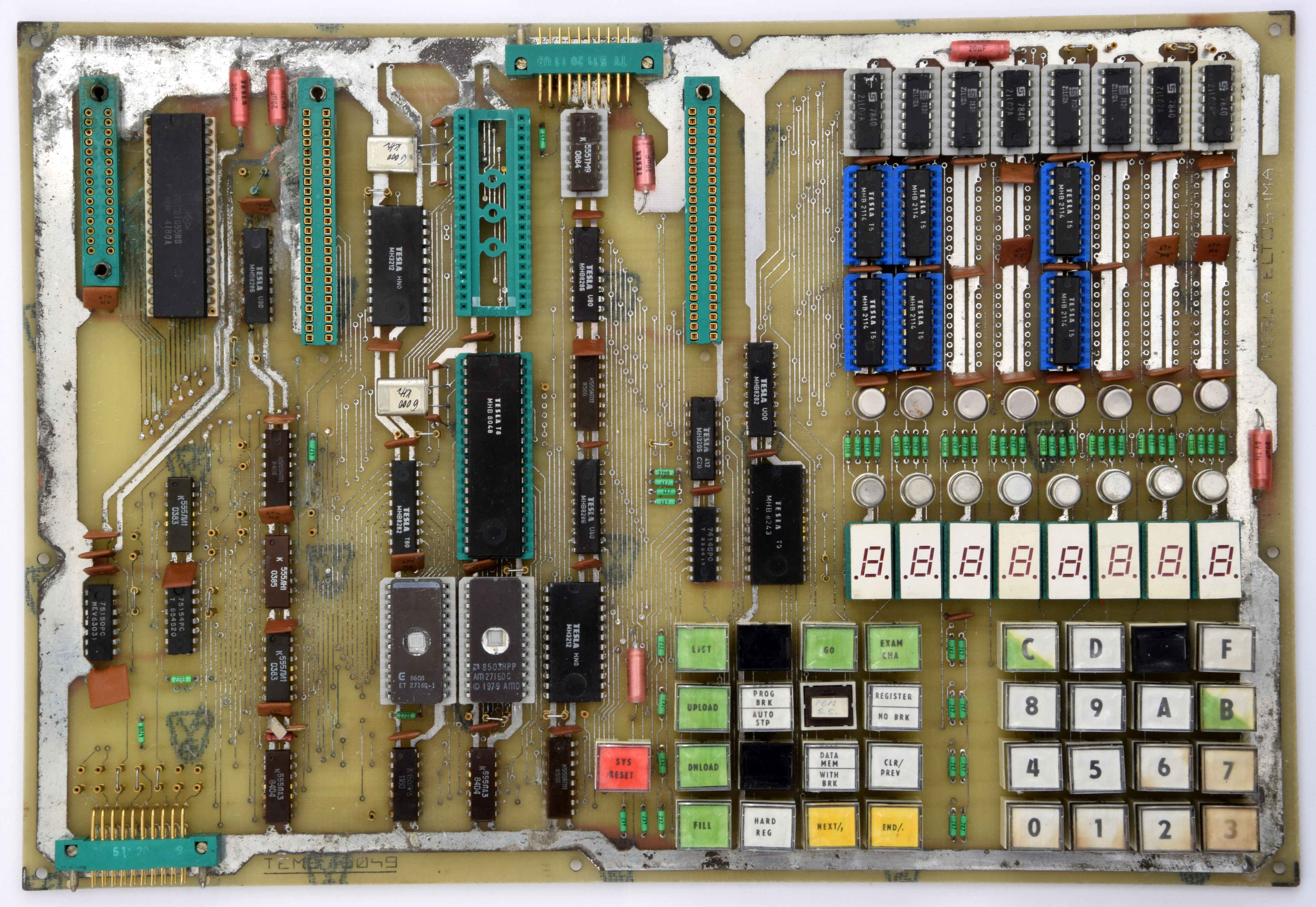

TEMS 49 je vývojový prostředek pro tvorbu programů pro MCU x48 tj. 8048/8035/8748 kdy TEMS 49 je v podstatě TEMS 48 s přidaným řídícím mikropočítačem.

TEMS 49 obsahuje dva MCU 8035 kdy jeden je řídící a obsluhuje „jednodeskový mikropočítač“ a druhý MCU 8035 je výkonný aneb v něm běží uživatelský program …

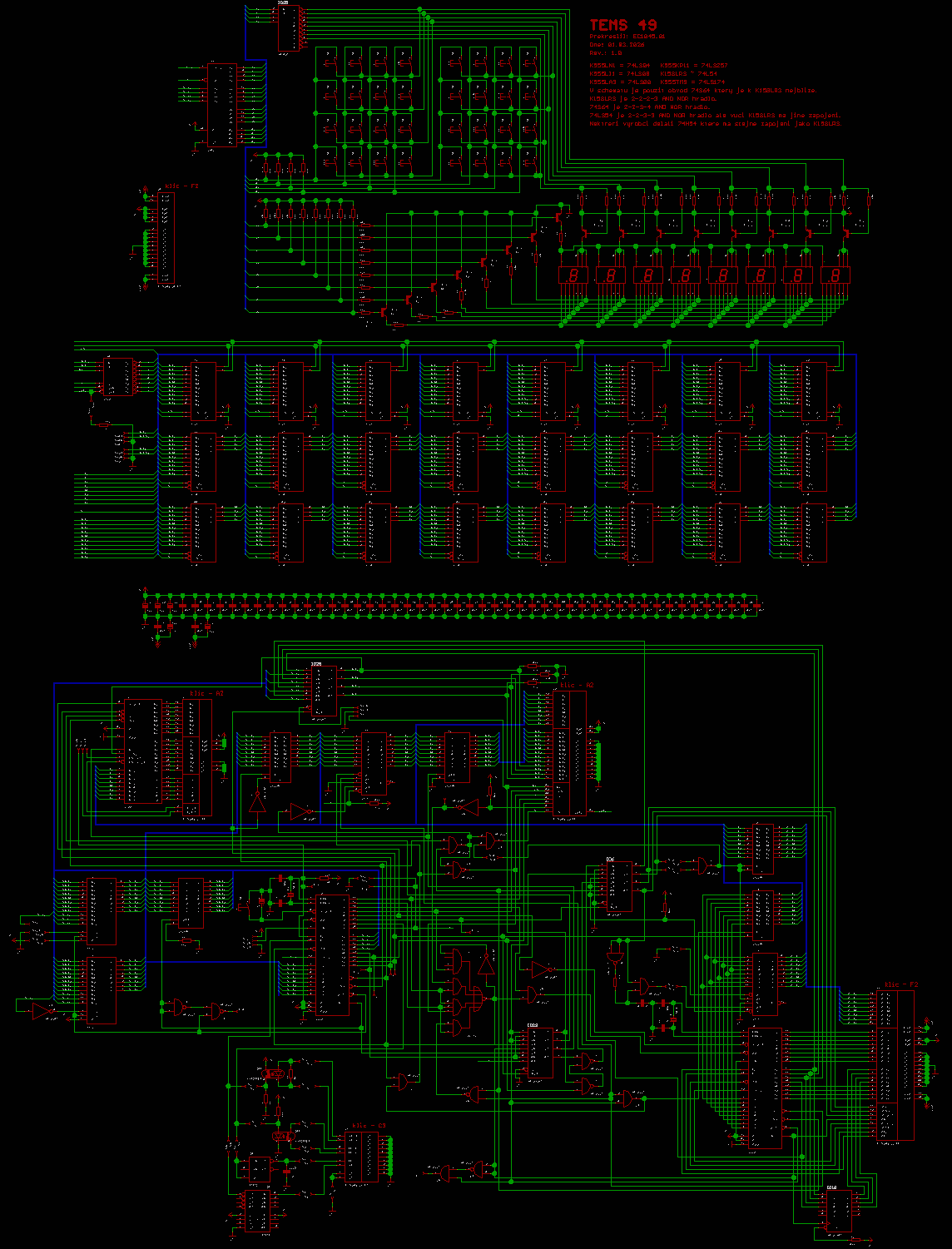

Schéma TEMS 49, černobílá verze ZDE.

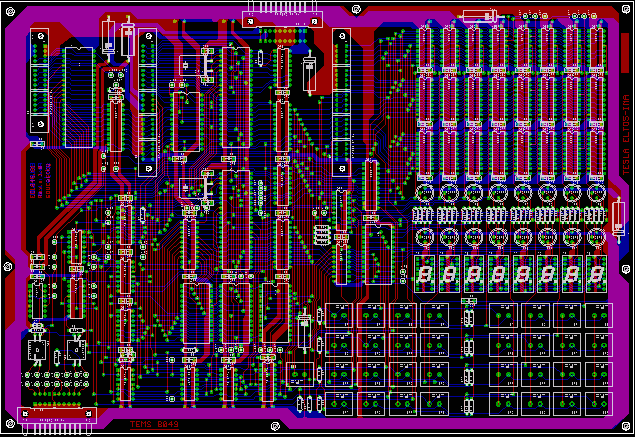

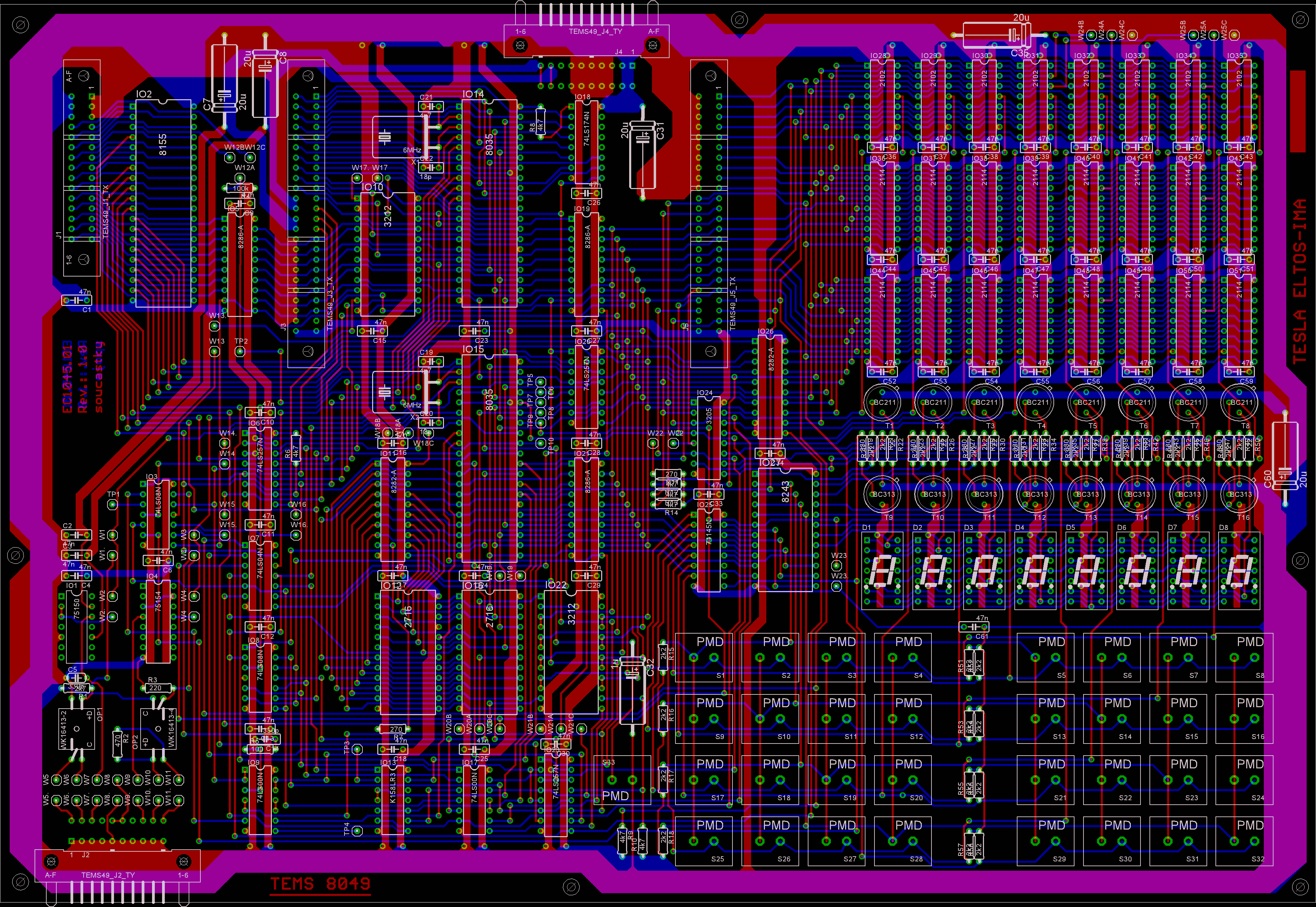

DPS TEMS 49

Obsah EPROM řídícího MCU emulátoru TEMS 49.

:020000040000FA
:20000000C5273D3EB81AB919BA00FAE3A0181AE90AB8E0B904B4FBF4E9BA8D94FA23C03AA6
:2000200054DDB92D1194E354DD99EFAF0937F261FF3637146B045FB91EB100B91FB1F4468D
:200040003F56411465B91FF10301B91FA1E659B91EF10301B91EA1045DB803E85B4643049C
:2000600063FF552400B904E96700830937F27B367B23613AB900233991D4EE8397A7B92EE9
:20008000F1C693FB929320472030183014A734BE970483FBD312C6A1FBD313C6A1BA0204DD
:2000A000C8B838B903E46EB930B103F0C8530F96BDF47DF047530F96C1F47D04C3F478F07B
:2000C00047F478F0E478BA0427D7FBD317C6F0AF0937F2DEFF234514F2FA14F204ECFF2788
:2000E0005400FAF478B931B1FF34BEFBD31396C62400F5B472B4AAE583D46FAA8300000008
:200100002301540034BEFBD313C600BC1DB92CB100B92DB100FCE3F2BADBC625FC0303ACC9
:20012000B92C112415B92CF1D30F963AAF0937F236FF2400243AFFF50400D31F964A89100D
:20014000B904E94299EF146B2400D310031D5402FB92577257849D1CFCE3B92FA11CFCE3E6
:20016000B92EA1B906B826B00018E96734BEB92FF1AC1CFCE397F777DBC691F685B92DF147
:2001800017A11C2473B92DB100B92FF1E35404249CB92FF1E3B92D61540434BEBC00232637
:2001A0006C6CA8147CF6B81CB92EF107A1C6B8FBD313C6B834BE249E8400BA0104C8AF0991
:2001C00037F2CCFFD4EE235714F224CFFFF45DAB8334F454D4F4B7F4B7AA8376DF24EEFA44
:2001E000AD34F454D44301F4B7FDF4B7F4B7BA8D94FA2400B80BB940BABAA4FBB931F1839A
:200200000319F46AA3B935A1B935F1A3F217F47DB935F117A14408E47D373D444A4C4F5104
:2002200054575A5D6063656B71777D83898B8D938F919597999C9F7950505C50C0787954C3
:200240006D4066E70040501C54C073B97939F43DDC7130B8386DF83E73B85E54B86D78FC4F
:200260003938FC3DD0735C507806C8735C50785BC8735C507866C8735C50786DC8735C5035
:20028000787DC8735C507807C873D05EF750BD73FC5EFC76D054FC7CD06D6DF8777CD077DF
:2002A0006DF8ACB0B4B8BCC0C4C8CCD05B0706FD5B7F06FD5B076DFF7F0766FF7F0766E79F
:2002C00078796DF8507977DE73505CBD585C54F300005CF0FCE3AA2301E7EAD983B92AF1D9
:2002E000AAD4ABB4ECE6EB94E344E183B92DF1530147B9274143C03AB926F1A98300000079
:200300000000000800000001000000000000FF0F00000004010008FF00130103201F510112
:200320001E5B011051031C51021851021451000B58010C58011D5B00010000020000040058
:2003400000050000060000070000000000200000FF2C1A161B1119952C1A96321B161A15C8
:20036000991409001409000014090000000000000000000000040904000083000000830076
:20038000904290C7761153F790C5F80409040A008300000083009080A880F21328A00409E3
:2003A000F004090400008300000083009080A880D7A5B57213A580628093122932265223A6
:2003C0009220B21DD21A0F04090E04090D04090C04090A040909040932475243923FB23B4D
:2003E000D237803F0409803E0409803D0409803C0409803A0409803904090000000000003D
:200400002306B92C61B30F26281E1118322E2C845585F59457E52400F59400E52400859597
:20042000F59457E52400A40054DD2400A461BA008434BA012304B92D61A1D4ABFBD313C673
:200440005334BEB92EB101B826B000B927B100147CE63A240085B92DF1032C5402B82714F7
:20046000AB2348F47D14F9FA47F478FAF47834BEFB9281FA4753F0B67B27956BAAD4AB844C
:2004800056D31396872400FBD312969094E38455FBD317969994EE8455BA0304C8A534D1E7
:2004A000AF0937F2ACFFF5B472E584B8FFFAB930B10247F478FAF47834BEFB92CFFCE33762
:2004C00052C3A5FA4753F076CB27B56BAA84ADD31396D524DBD30196DB24DBBA8D94FABA58
:2004E0000304C8B92611F196ED19F1173183B926F1072196F919F1073183B800B917A4FB81
:2005000023025400B92EF19615B926F1B924A1B927F1B925A1FBD312C61F2301B921A1B924
:2005200024F1AAB921F1075307E70308B926A1F4ABB926F117A1B921F153F0B92541AAF46C
:20054000ABBAA394FAB923F1F4B7B921F1F4B7B922F1F4B7B920F1F4B789039A7FF4C6A428
:200560006B89102302540099EF146BB92DF10371B37C7680768099FD8901A48299FCA48290
:2005800089038A909ADF99DFF4E0F45AAF0937F2ACFF235214F2D349C69E86A4A48A23554B
:2005A00014F2A4B6234214F2A4BAA4B6FF34FC37F2B686BAA48AD400A4D6D400B92DF10340
:2005C000C2B3C7DDDDCBCBBA0B04C8B9E3D4EE81D4F334FCF24134BEFBD31396EA34BEFBB5
:2005E000D31296EA23025400A4412406B926F137B92861B927F137B929718323603AE4F452
:20060000F4E923035400BA6194FA8AB02314919AEF8903F4C68A309A7F8903F4C6BA77942B
:20062000FAF4B7B920A1F4B7B922A1F4B7B921A1F4B7B923A1BA8D94FAB921F1075307E73E
:200640000308B926A1F4A003FEAAB924A1F4ABB92611F4A0AA53F02A13FF530FB925A14ADB
:20066000AAF4ABB82514AB2340F47DB82004BFB92DF10375B37B7B7F8C9A9A54EC8183B9F2
:2006800026F1533FC688E4A0B923F183B926F1F2960320A9F183D4EB818354EC99F78908D3
:2006A00099FD890181230186AA2783B92DF103B1B3B7B7BCCADADA54ECFA9183B926F15344
:2006C0003FC6C5E4ABFAB923A183B926F1F2D50320A9FAA183D4EBFA918354ECFA12E389C1
:2006E00001C4E599FE99F7818908830360A98A209A6E83B934A1F45AB934F196F68300008A
:20070000D5AF23F062273E3DFD073F0338A8F0537F3D473E0CAABB04FA67AAF63BBE01B96B
:2007200032F12CDCC62CB933B103E43BB933F1C63B07B933A1963BFCB931A1B93211EB1814
:20074000ED58BD08B932B100FE964DBCFFBE00B934F1C65807B934A1FF93160083F45AB9D6
:2007600031F1F25D273E3D372183B838B908B00018E96EB930B10883530F0390A3AEB93067
:20078000F10337A9FEA1B930F107A1968FB108833F065B4F666D7D077F67777C395E797163
:2007A000B926F1F4B72380F4B7E4B7FAF4B7B926F1537FF4B7E4B78AB09199FE89029A7F42
:2007C000F4C68A808183F4E0B90A86DEE9CA8910F4E9BA8D94FA99EF146BBA0E04C8E4E9F0
:2007E00099F789089ABF89048399FB8920B905E9EF8A4083FAE390181AE9F4830000000050
:00000001FF
