Displej
Elektronika
K displeji nemám dokumentaci, schéma získáno zpětným inženýrstvím.
Displej pochází z elektronického psacího stroje ROBOTRON S6130 z produkce RFT.
Stručný popis displeje.

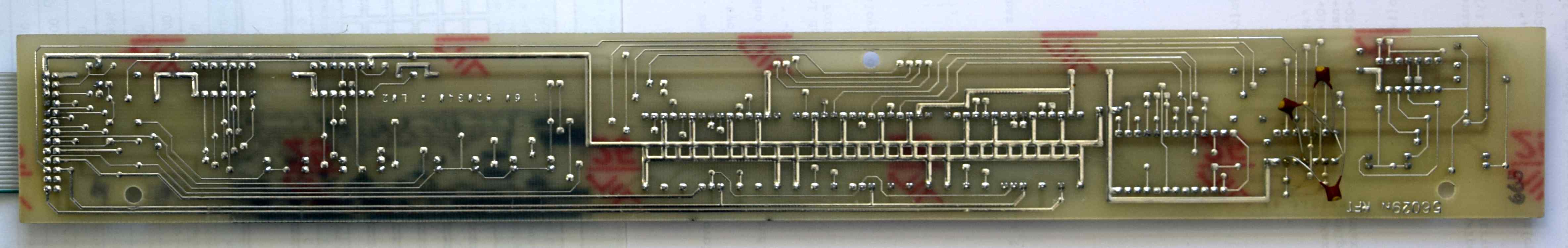

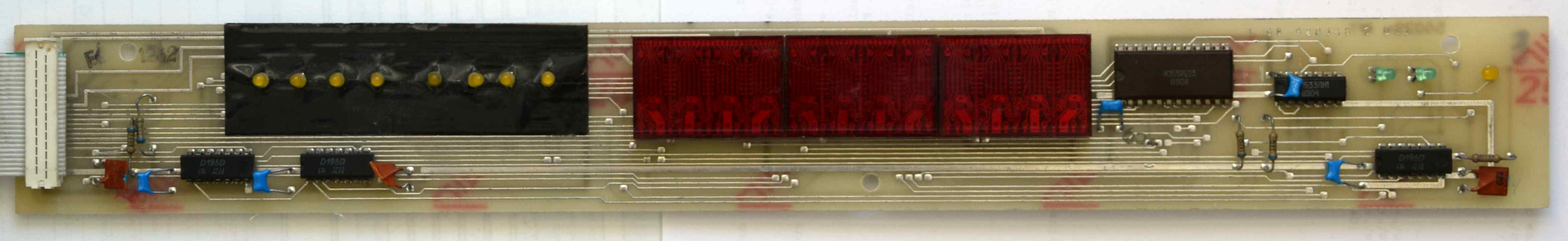

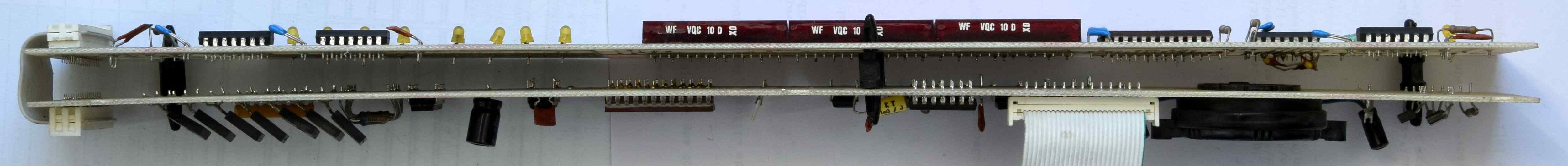

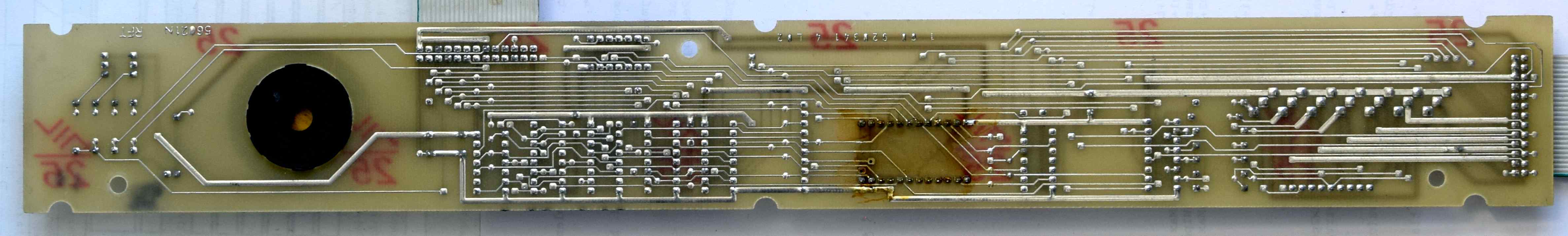

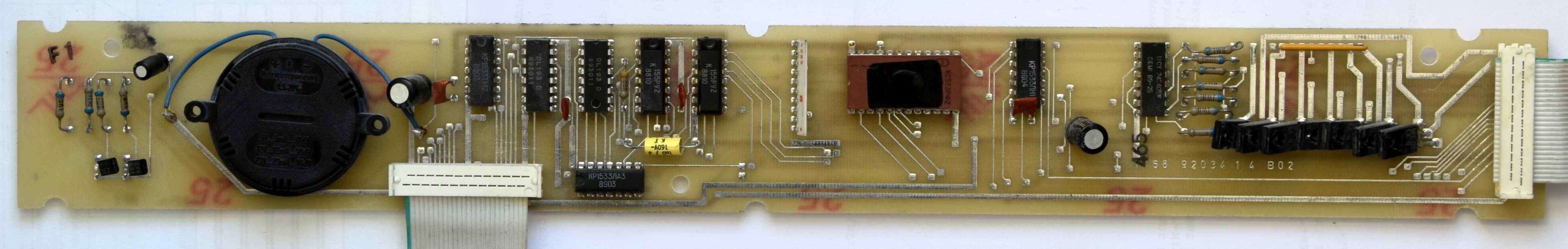

Displej je řešen na dvou DPS kdy na jedné desce je osazen vlastní displej a na druhé DPS je řídící elektronika s pamětí a výkonová část. Displej používá třikrát čtyřmístné maticové displeje VQE10 ale zobrazení je alfanumerické, znaky jsou zobrazované v rastru 5x7v lehce modifikovaném ASCII kódováním a taktéž je k dispozici několik svítivek (LED). Displej neobsahuje adresné dekodéry, aneb o adresaci se musí postarat spolupracující zařízení, Displeje je možný pouze zápis.
Grafické zobrazení znakové sady.
XXXXX ..X.. ..X.. ..... ..X.. XXXXX ..... ..... XXXXX .XXX. .XXX. .X.X. ..X.. ..X.. ..... ..... XXXXX ..X.. X.X.X ..X.. ..X.. .XXX. ..... ..X.. XXXXX ..X.. ..X.. XXXXX X.X.X X.X.X ..X.. ..X.. XXXXX X.X.X ..X.. ..X.. .XXX. ..X.. XX.XX ...X. XXXXX .XXX. .XXX. .X.X. ..X.. ..X.. ..... ..X.. XXXXX ..X.. ..X.. ..... XXXXX ..X.. ..... ..X.. 00 01 02 03 04 05 06 07 ..... ..... ..... ..... ..XXX ..... ..... ..... ..X.X ..X.. X.X.. .X... ...X. ..X.. ..X.. ..... .X..X .X... X..X. ..X.X XX.X. .X..X .X..X ..... XXXXX XXXXX XXXXX XXXXX X.XX. XXXXX XXXXX ..... .X... .X... ...X. ..X.X X.XX. .X... .X..X ..... ..X.. ..X.. ..X.. .X... X.X.. ..X.. ..X.. ..... ..... ..... ..... ..... XX... ..... ..... ..... 08 09 0A 0B 0C 0D 0E 0F .X.X. .X.X. .X.X. ..... XXXXX ..... ..... ..... ..... ..... ..... ..... ..... XXXXX ..... ..... .XXX. .XXX. ..... ..... ..... ..... XXXXX ..... ....X X...X X...X .X..X ..... ..... ..... ..... .XXXX X...X X...X X.XX. ..... ..... ..... XXXXX X...X X...X X...X ..... ..... ..... ..... ..... .XXXX .XXX. .XXXX ..... ..... ..... ..... ..... 10 11 12 13 14 15 16 17 ..... X.... .X... ..X.. .X.X. ...X. ...XX ..X.. ..... X.... .X... ..X.. ..... ...X. ..X.. .X.X. ..... X.... .X... ..X.. ..... ...X. ..X.. ..... ..... X.... .X... ..X.. ..... ...X. .XXXX ..... ..... X.... .X... ..X.. ..... ...X. ..X.. ..... XXXXX X.... .X... ..X.. ..... ...X. .X... ..... ..... X.... .X... ..X.. ..... ...X. .XXXX ..... 18 19 1A 1B 1C 1D 1E 1F .X... ..X.. .X.X. .X.X. XXX.. XX... ..X.. ..X.. X.X.. ..X.. .X.X. .X.X. ..X.. XX..X .X.X. ..X.. ..X.. ..X.. .X.X. XXXXX .X... ...X. .X.X. .X... .X... ..X.. ..... .X.X. ..X.. ..X.. .XX.. ..... XXX.. ..... ..... XXXXX XX... .X... X.X.X ..... ..... ..... ..... .X.X. ..... X..XX X..X. ..... ..... ..X.. ..... .X.X. ..... ...XX .XX.X ..... 20 21 22 23 24 25 26 27 ..X.. ..X.. XXX.. ..... ..... ..... ..... ..... .X... ...X. ..X.. ..X.. ..... ..... ..... ....X .X... ...X. .X... ..X.. ..... ..... ..... ...X. .X... ...X. ..X.. XXXXX ..... XXXXX ..... ..X.. .X... ...X. XX..X ..X.. .X... ..... ..... .X... .X... ...X. ...X. ..X.. .X... ..... ..... X.... ..X.. ..X.. ..X.. ..... X.... ..... .X... ..... 28 29 2A 2B 2C 2D 2E 2F .XXX. ..X.. .XXX. XXXXX ...X. XXXXX ..XX. XXXXX X...X .XX.. X...X ....X ..XX. X.... .X... ....X X...X ..X.. ....X ...X. .X.X. XXXX. X.... ...X. X.X.X ..X.. ..XX. ..XX. X..X. ....X XXXX. ..X.. X...X ..X.. .X... ....X XXXXX ....X X...X .X... X...X ..X.. X.... X...X ...X. X...X X...X X.... .XXX. .XXX. XXXXX .XXX. ...X. .XXX. .XXX. X.... 30 31 32 33 34 35 36 37 .XXX. .XXX. ..... ..... ..... ..... .X... .XXX. X...X X...X ..... ..... ..... ..... X.X.. X...X X...X X...X .X... .X... .X..X XXXXX X.X.. ....X .XXX. .XXXX ..... ..... .X..X ..... .X... ...X. X...X ....X ..... .X... .X..X XXXXX ..... ..X.. X...X ...X. .X... .X... .XXX. ..... ..... ..... .XXX. .XX.. ..... X.... .X... ..... ..... ..X.. 38 39 3A 3B 3C 3D 3E 3F ..XX. .XXX. XXXX. .XXX. XXXX. XXXXX XXXXX .XXX. .X... X...X X...X X...X .X..X X.... X.... X...X .XX.. X...X X...X X.... .X..X X.... X.... X.... .X.X. XXXXX XXXX. X.... .X..X XXXX. XXXX. X..XX ..XX. X...X X...X X.... .X..X X.... X.... X...X ...X. X...X X...X X...X .X..X X.... X.... X...X .XX.. X...X XXXX. .XXX. XXXX. XXXXX X.... .XXXX 40 41 42 43 44 45 46 47 X...X .XXX. ..XXX X...X X.... X...X X...X .XXX. X...X ..X.. ...X. X..X. X.... XX.XX XX..X X...X X...X ..X.. ...X. X.X.. X.... X.X.X XX..X X...X XXXXX ..X.. ...X. XX... X.... X.X.X X.X.X X...X X...X ..X.. X..X. X.X.. X.... X...X X..XX X...X X...X ..X.. X..X. X..X. X.... X...X X..XX X...X X...X .XXX. .XX.. X...X XXXXX X...X X...X .XXX. 48 49 4A 4B 4C 4D 4E 4F XXXX. .XXX. XXXX. .XXX. XXXXX X...X X...X X...X X...X X...X X...X X...X ..X.. X...X X...X X...X X...X X...X X...X X.... ..X.. X...X X...X X...X XXXX. X...X XXXX. .XXX. ..X.. X...X .X.X. X.X.X X.... X.X.X X.X.. ....X ..X.. X...X .X.X. X.X.X X.... X..X. X..X. X...X ..X.. X...X ..X.. X.X.X X.... .XX.X X...X .XXX. ..X.. .XXX. ..X.. .X.X. 50 51 52 53 54 55 56 57 X...X X...X XXXXX X...X X...X X...X ..X.. ..... X...X X...X ....X ..X.. .XXX. ..... .XXXX ..... .X.X. X...X ...X. .X.X. X...X X...X X.X.. ..... ..X.. .XXX. ..X.. X...X X...X X...X .XXX. ..... .X.X. ..X.. .X... XXXXX X...X X...X ..X.X ..... X...X ..X.. X.... X...X X...X X...X XXXX. ..... X...X ..X.. XXXXX X...X .XXX. .XXX. ..X.. XXXXX 58 59 5A 5B 5C 5D 5E 5F .X... ..... X.... ..... ....X ..... ...XX ..... ..X.. ..... X.... ..... ....X ..... ..X.. ..... ..... .XXX. XXXX. .XXX. .XXXX .XXX. .XXXX .XXXX ..... ....X X...X X.... X...X X...X ..X.. X...X ..... .XXXX X...X X.... X...X X.XXX ..X.. .XXXX ..... X...X X...X X.... X...X X.... ..X.. ....X ..... .XXXX XXXX. .XXX. .XXXX .XXXX ..X.. .XXX. 60 61 62 63 64 65 66 67 X.... ..X.. ...X. X.... .XX.. ..... ..... ..... X.... ..... ..... X.... ..X.. ..... ..... ..... XXXX. .XX.. ..XX. X..X. ..X.. XXXX. XXXX. .XXX. X...X ..X.. ...X. X.X.. ..X.. X.X.X X...X X...X X...X ..X.. ...X. XXX.. ..X.. X.X.X X...X X...X X...X ..X.. X..X. X..X. ..X.. X.X.X X...X X...X X...X .XXX. .XX.. X...X .XXX. X.X.X X...X .XXX. 68 69 6A 6B 6C 6D 6E 6F ..... ..... ..... ..... ..X.. ..... ..... ..... ..... ..... ..... ..... ..X.. ..... ..... ..... XXXX. .XXXX X.XX. .XXX. .XXXX X...X X...X X...X X...X X...X XX..X X.... ..X.. X...X X...X X.X.X XXXX. .XXXX X.... .XX.. ..X.. X...X .X.X. X.X.X X.... ....X X.... ...X. ..X.. X...X .X.X. X.X.X X.... ....X X.... XXX.. ...XX .XXXX ..X.. .X.X. 70 71 72 73 74 75 76 77 ..... ..... ..... ...X. ..... .X... .XXX. ...X. ..... ..... ..... ..X.. ..... ..X.. X...X ..X.. X...X X...X XXXXX .XXX. .XXX. .XXX. X.XX. ..... .X.X. X...X ...X. X...X X.... X...X X...X ..... ..X.. .XXX. ..X.. X.XXX X.... X.XXX X...X ..... .X.X. ...X. .X... X.... .XXX. X.... X.XX. ..... X...X XXX.. XXXXX .XXXX ...X. .XXXX X.... ..... 78 79 7A 7B 7C 7D 7E 7F ..... ..... ..... ..... X.X.X ..... X...X ..... ..... ..... ..... ..... .X.X. ..... X...X ..... X...X ..X.. X...X ..... X.X.X .XXX. ..... X...X XXXXX ..X.. X...X ..... .X.X. .XXX. X...X X.X.X X...X X.X.X X.X.X ..... X.X.X .XXX. X...X XX.XX ..... ..X.. X...X XXXXX .X.X. .XXX. X...X X.X.X ..... ..X.. X...X XXXXX X.X.X .XXX. .XXXX X...X 80 81 82 83 84 85 86 87 ....X ...XX ..... ..... .XXX. ..... ..... ..... XXXXX ....X ..... .XXXX ..X.. ..... ..... ..... ....X .XXXX X.X.X X.... ..X.. ..... X...X ..X.. XXXXX X...X X.X.X .XXX. ..X.. XXXXX .X.X. .X.X. ....X X...X X.X.X ....X ..... .XXX. ..X.. X...X XXXXX X...X X.X.X XXXX. ..X.. ..X.. ..... ..... ....X .XXXX X.X.X ...X. .X... ..... ..... ..... 88 89 8A 8B 8C 8D 8E 8F ....X .XXX. .XXX. .XXX. XX..X .XXX. .X... .X.X. ....X ..... ..... ..... XX.XX ..... .X... X.X.X ....X ..X.. X...X ..... XXXX. .XXX. XXXX. .X.X. ....X ..X.. X...X ..... XXX.. .XXX. .X... X.X.X ....X X.X.X X.X.X ..... XXXX. .XXX. .X... .X.X. ....X ..X.. X...X XXXXX XX.XX .XXX. .XXX. X.X.X ....X ..X.. X...X XXXXX XX..X .XXX. ..X.. .X.X. 90 91 92 93 94 95 96 97 ..... XXXX. ..... X.... XXXXX XXXXX XX... X.... XXXXX .X..X ..... XX... ..... ..... ..XXX X.XXX ..... .X..X ..X.. XXX.. .X... ..X.. ...X. ...X. ..X.. XXX.X ..X.. XXXX. ..X.X X.X.X XX.X. XX.X. .XXX. .X..X ..X.. XXX.. XXXXX .XXX. X.XX. X.XX. ..X.. .X..X ..X.. XX... ..X.X ..X.. X.X.. X.X.. ..... XXXX. ..X.. X.... .X... XXXXX XX... XX... 98 99 9A 9B 9C 9D 9E 9F X.... XX... X.... XX... X.... XXXXX XXXXX XXXXX X.... ..... X.... ..... X.... ..X.. .XXX. XXXXX .X... .X... ..X.. ..X.. ..X.. ..X.. ..X.. ..X.. ..X.X ..X.X X.X.X X.X.X X..X. ..X.. ..X.. ..X.. XXXXX XXXXX .XXX. .XXX. XXXXX X.X.X X.X.X X.X.X ..X.X ..X.X ..X.. ..X.. ...X. .XXX. .XXX. .XXX. .X... .X... XXXXX XXXXX ..X.. ..X.. ..X.. ..X.. A0 A1 A2 A3 A4 A5 A6 A7 ....X ....X ....X ....X XXXXX ..... ..... .X.X. ..... ..... ..... ..... XXXXX ..... ..... ..X.. X..X. X..X. X.XXX ..XX. .XXX. X.... ....X .XXXX X.X.X X.X.X X.X.. ..X.X ..X.. X..X. .X..X X.... X.X.X X...X X.XX. ..XX. X.X.X X.XXX XXX.X .XXX. X.X.X X..X. X...X ..X.. .XXX. X..X. .X..X ....X X..X. X.XXX X.XX. ..X.. ..X.. X.... ....X XXXX. A8 A9 AA AB AC AD AE AF XX... XX... XX... XX... XX... XX... .XXX. XX... XX... XX... XX... XX... XX... XX... X.... XX... ...X. ...X. ..XX. ..X.X ..XXX ..... X.X.. ....X ..XX. ..X.X ....X ..XX. ..X.. ..... X.X.. ...X. ...X. ....X ...X. ..X.. ..XX. ..... X.XXX ..X.. ...X. ...X. ....X ..XX. ..X.. ..... X.... .X... ...X. ..XXX ..XX. ..X.X ..X.. ..... .XXX. X.... B0 B1 B2 B3 B4 B5 B6 B7 ..... ..X.. ..X.. ..X.. ..XX. ..... ..... ..... .XXX. ..... .XXX. ..X.. ..XX. ..... ..... .XXX. X...X ..... X.X.X X.X.X ..... ..... ..XX. XXXXX XXXXX X...X ..X.. .XXX. ..XX. ..XX. .XXXX XXXXX XXXXX X...X ..X.. ..X.. .XXXX ..XX. .XXXX XXXXX XXXXX X...X X...X X...X .XXXX ..... ..XX. .XXX. ..... .XXXX XXXXX XXXXX ..XX. ..... ..... ..... B8 B9 BA BB BC BD BE BF ..X.. .X.X. ...X. X.... ..X.. ..... ...X. ..X.. ..X.. ..X.. ..X.. .X... ..X.. .XXX. ..X.. ..X.. ..... .XXXX ..... ..... ..... X.... ..... XXXXX X...X X.... X...X .XX.. .XXX. .XX.. .XX.. X.... X...X X.... X...X X..X. X...X ...X. X..X. XXXX. X...X X.... X...X X..X. X...X XXX.. X..X. X.... .XXX. .XXXX .XXXX .XX.. .XXX. ..X.. .XX.. XXXXX C0 C1 C2 C3 C4 C5 C6 C7 ..... ..X.. ...X. X.... X...X X..X. ..... ..... X...X ..X.. ..X.. X...X X...X X..X. .X... ...X. .XXX. ..... .XXX. X..X. ..... ..... ..X.. ..X.. .X.X. .XXX. ....X ..X.. .XXX. .XX.. ...X. .X... .XXX. X...X .XXXX .X... X...X X..X. ..X.. ..X.. X...X XXXXX X...X X.... X...X X..X. .X... ...X. ..... X...X .XXXX ..... .XXX. .XX.. ..... ..... C8 C9 CA CB CC CD CE CF X...X ..... ..X.. .X.X. ..X.. ..X.. ..X.. .X... X...X .XXXX ..X.. ..X.. ..X.. ..X.. ..X.. ..X.. ..... X.... ..... ..... .XXXX ..... ..... .XXX. X...X X.... XXXX. .XXX. X.... .XXX. .XX.. ....X X...X X.... ..X.. X...X .XXX. ..X.. ..X.. .XXXX X...X .XXXX .X... XXXXX ....X ..X.. ..X.. X...X .XXX. ...X. XXXX. X...X XXXX. .XXX. .XXX. .XXXX D0 D1 D2 D3 D4 D5 D6 D7 ..X.. ..X.. ..X.. ..X.. ..... ..X.. ....X .X... ..X.. ..X.. ..... ..... ..... ..X.. ....X .X... .XXXX ..... XXXXX ..... ..... XXXXX ....X .XX.. X.... .XXX. ...X. XXXX. ..... ...X. XXX.X .X... X.... X.... ..X.. ..X.. ...X. ..X.. .X.XX XX... X.... X.... .X... .X... ..X.. .X... X...X .X... .XXXX .XXX. XXXXX XXXX. ..XX. XXXXX XXX.X .XXXX D8 D9 DA DB DC DD DE DF ..X.. .X... ..... ..X.. ..... XXXX. ..X.. .X.X. ..... ..X.. ..... .X.X. .XXX. X.... ..X.. ..X.. .XXX. ..... ..X.. ..... ....X X..X. .XXX. .XXX. ..X.. X...X ...X. ..X.. .XXXX XXXXX X.... X...X ..X.. X...X XXXXX ..X.. X...X X..X. .XX.. X.XXX ..X.. X...X ...X. ..X.. .XXXX X..X. ...X. X.... .XXX. .XXXX ..X.. ..X.. ...X. X...X XXX.. .XXXX E0 E1 E2 E3 E4 E5 E6 E7 .X.X. XX..X .X.X. .X.X. .X..X .X.X. .X.X. ..X.. ..X.. .X..X ..X.. ..X.. .X..X ..X.. ..X.. ..X.. ..... .X... .XXX. ..... .X... ..... ..... ..... XXXX. .X... X.... .XXX. XXXX. X.XX. XXXX. XXXX. X...X .X... .XX.. X.... .X... XX..X ..X.. X...X X...X .X... ...X. X.... .X... X.... .X... X...X X...X XXX.. XXX.. .XXX. ..XX. X.... XXXX. X...X E8 E9 EA EB EC ED EE EF .X.X. ..X.. .X.X. XXXXX ..... XXXXX ..X.. XXXXX ..X.. ..X.. ..X.. XXXXX .XXX. XXXXX .X.X. XXXXX XXXXX X...X ..... XXXXX X...X XXXXX ..... XXXXX ...X. X...X ..... XXXXX X.XXX XXXXX .XX.. XXXXX ..X.. .XXX. ..... XXXXX X.... XXXXX X..X. XXXXX .X... ...X. ..... XXXXX .XXXX XXXXX X..X. XXXXX XXXXX XXX.. ..... XXXXX ...X. XXXXX .XX.. XXXXX F0 F1 F2 F3 F4 F5 F6 F7 ..X.. ..X.. .XX.. XXXXX .X.X. XXXXX XXXXX XXXXX .X.X. .X.X. ..X.. XXXXX ..X.. XXXXX XXXXX XXXXX .XXX. ..... ..XX. XXXXX .XXX. XXXXX XXXXX XXXXX ....X .XX.. ..X.. XXXXX ....X XXXXX XXXXX XXXXX .XXXX ..X.. .XX.. XXXXX .XXXX XXXXX XXXXX XXXXX X...X ..X.. ..X.. XXXXX X...X XXXXX XXXXX XXXXX .XXXX .XXX. .XXX. XXXXX .XXXX XXXXX XXXXX XXXXX F8 F9 FA FB FC FD FE FF
Výpis obsahu EPROM se znakovým generátorem (INTELHEX)
:2000000000000000000000001B111B1B0A111B001B110A1B1B111B001F151B001B151F0012 :200020001B1B1B0A111B0000001B110A1B1B1B001F1F1F1B041F1F001F1F1B1B171B1B0037 :200040001F0B0D001D1B1F001F1B1D001D1B1F001F1A1600171B1F001F1D0B000B1D1F0036 :2000600003171412121A1C001F1B0D001D1B1F001F1B0D000D1B1F001F1F1F1F1F1F1F00F3 :20008000151F110F010E0100151F110E0E0E1100151F1F0E0E0E01001F1F1F0D121F1F0044 :2000A000001F1F1F1F1F1F001F001F1F1F1F1F001F1F001F1F1F1F001F1F1F1F001F1F0058 :2000C0001F1F1F1F1F001F001E1E1E1E1E1E1E001D1D1D1D1D1D1D001B1B1B1B1B1B1B000C :2000E000151F1F1F1F1F1F001717171717171700071B1B011B1D01001B151F1F1F1F1F004E :200100001D1A1B1D181F1F001B1B1B1B1F1F1B001515151F1F1F1F00151500150015150031 :20012000181B1D1B1C1F1F001C0C171B1D0607001B1515190A1609001B1B1D1F1F1F1F0020 :200140001B1D1D1D1D1D1B001B17171717171B00181B1D1B0C171B001F1B1B001B1B1F00DC :200160001F1F1F1F1D1D1E001F1F1F001F1F1F001F1F1F1F1F1F1D001F0F171B1D1E1F0060 :20018000110E0E0A0E0E11001B191B1B1B1B1100110E0F131D1E0000000F17130F0E110067 :2001A0001713151600171700001E100F0F0E1100131D1E100E0E1100000F171B1D1E1E002C :2001C000110E0E110E0E1100110E0E010F1719001F1F1D1F1F1D1F001F1F1D1F1D1D1E00A0 :2001E0001F1F0D0D0D111D001F1F001F001F1F001D1A1A1D1F1F1F00110E0F171B1F1B006C :20020000131D191513171900110E0E000E0E0E00100E0E100E0E1000110E1E1E1E0E1100E6 :20022000100D0D0D0D0D1000001E1E101E1E0000001E1E101E1E1E00110E1E060E0E0100CF :200240000E0E0E000E0E0E00111B1B1B1B1B110003171717161619000E161A1C1A160E007C :200260001E1E1E1E1E1E00000E040A0A0E0E0E000E0C0C0A06060E00110E0E0E0E0E1100C8 :20028000100E0E101E1E1E00110E0E0E0A160900100E0E101A160E00110E1E110F0E11006E :2002A000001B1B1B1B1B1B000E0E0E0E0E0E11000E0E0E15151B1B000E0E0E0A0A0A150050 :2002C0000E0E151B150E0E000E0E0E111B1B1B00000F171B1D1E00000E1B150E000E0E0031 :2002E0000E110E0E0E0E11000E1F0E0E0E0E11001B011A110B101B001F1F1F1F1F1F0000E9 :200300001D1B1F1F1F1F1F001F1F110F010E01001E1E100E0E0E10001F1F111E1E1E11005C :200320000F0F010E0E0E01001F1F110E021E0100071B011B1B1B1B001F1F010E010F1100F8 :200340001E1E100E0E0E0E001B1F191B1B1B1100171F1317171619001E1E161A18160E0016 :20036000191B1B1B1B1B11001F1F100A0A0A0A001F1F100E0E0E0E001F1F110E0E0E110046 :200380001F1F100E101E1E001F1F010E010F0F001F1F120C1E1E1E001F1F111E19171800DE :2003A0001B1B011B1B1B07001F1F0E0E0E0E01001F1F0E0E15151B001F1F0E0A0A0A150019 :2003C0001F1F0E151B150E001F1F0E0E111718001F1F00171B1D0000171B110E021E0100E5 :2003E0001F1F111E1E1117001D1B110E021E0100110E120E0E121E00171B1F1F1F1F1F0088 :200400001F1F0E000E1F1F001F1F1B1B0A1B1B001F1F0E0E0A0E0E001F1F1F1F1F00000075 :200420000A150A150A150A001F1F1111111111000E0E1F0E0E0E01001F1F0E0A040A0E00EA :200440000F000F000F000F00070F010E0E0E01001F1F0A0A0A0A0A001F011E110F10170029 :20046000111B1B1B1F1B1D001F1F1F00111B1F001F1F0E151B1F1F001F1F1B150E1F1F00A7 :200480000F0F0F0F0F0F0F00111F1B1B0A1B1B00111F0E0E0A0E0E00111F1F1F1F0000004E :2004A0000C04101810040C00111F1111111111001D1D101D1D111B00150A150A150A15003D :2004C0001F001F1B111B1F00100D0D080D0D10001F1F1B1B1B1B1B001E1C1810181C1E00A3 :2004E000001F1D0B000B1D00001F1B0A111B00001C031714121A1C001E021714121A1C00F8 :200500001E1E1D0B000B1D001C1F1D0B000B1D001E1E1B0A111B00001C1F1B0A111B0000AB :200520001E1E1B1600171B00001B1B1B0A111B0000111B1B0A111B0000001B1B0A111B00AC :200540000F1F160A0A0A16000F1F160A0E1602000F1F021A120E12000F1F130B131B1B009E :200560000000111B0A111B001F1F1E1602161E001F1F0F0D080D0F00151B011E110F100074 :200580001C1C1713171717001C1C170B0F1703001C1C130F170F13001C1C0B131B130B000F :2005A0001C1C031B131B1B001C1C1F1F1F1F1F00111E1A1A021E11001C1C0F171B1D1E0081 :2005C0001F110E0000001F001B1F1F0E0E0E01001B110A1B1B0E00001B1B0A111B0E000046 :2005E00013131F13010113001F1F1F13131F1F001F1F130101131F001F11000000111F00E8 :200600001B1B1F0E0E0E1100151B011E1E1E0100171B1F0E0E0E01001E1D1F19161619008A :200620001B1B1F110E0E11001F111E1917181B00171B1F19161619001B1B001E101E000045 :200640001F0E1115110E1F001B1B1F110E000E00171B110F010E01001E0E161B1D1E1F006E :200660000E0E1F110E0E110016161F19161619001F1D1B171B1D1F001F171B1D1B171F00D4 :200680000E0E1F0E0E0E11001F011E1E1E0117001B1B1F101B1D1000151B1F110E000E0029 :2006A0001B1B011E110F10001B1B1F111B1B11001B1B1F191B1B11001D1B110F010E0100EB :2006C0001B1B011E1E1E01001B1B1F111E1E11001B1F00171B1D00001B1F1F101B1D10009B :2006E0001F1F1F1F171B13001B1B00171B1D00000F0F0F08050E08001D1D191D1C1D0100BA :200700001B1F111B1B1B11001D1B1F0E0E0E01001F1F1B1700171B001B151F1B1B1B1B004D :200720001F110F010E011700101E160016160E001B1B111E19171800151B110E021E0100B8 :20074000151B1F100E0E0E000C0D1D1D1D1D1800151B111E19171800151B1F111E1E110017 :200760000D0D1D101D1D1300151B1F120C1E1E00151B1F101B1D10001B1B1F100E0E0E0006 :20078000151B00171B1D00001B1B0E0E11171800151B1F1F1F1F1F0000000000000000007D :2007A0001F110E021E01170000000000000000001B151F1916161900000000000000000016 :2007C0001B15110F010E01001B151F191B1B1100191B131B191B1100000000000000000063 :2007E000151B110F010E010000000000000000000000000000000000000000000000000099 :00000001FF

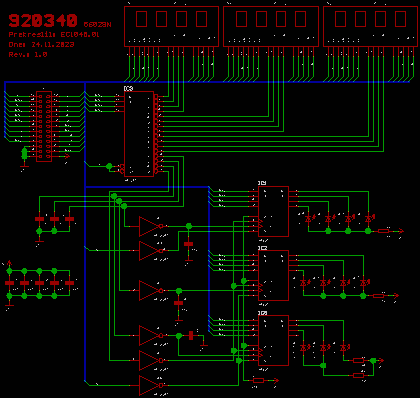

Schéma displeje a černobílá verze ZDE.

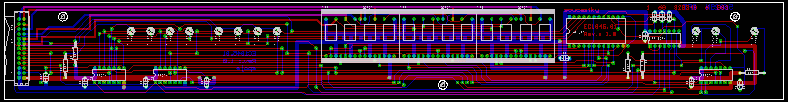

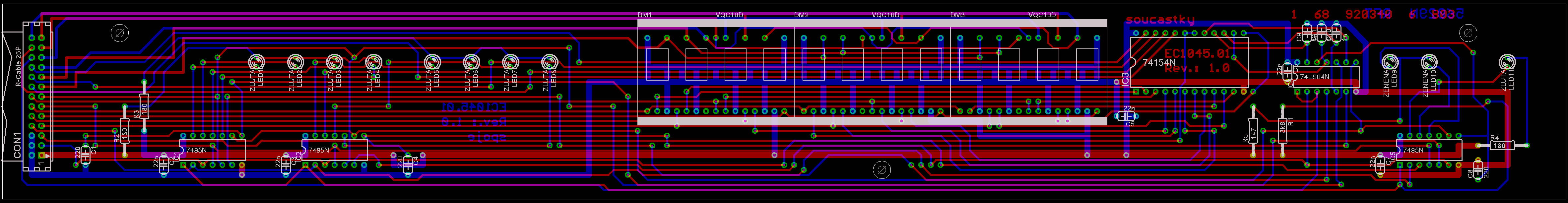

Výkres osazení displeje

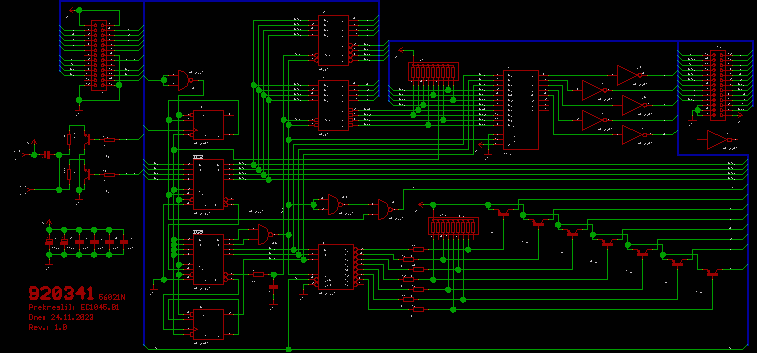

Schéma elektroniky a černobílá verze ZDE.

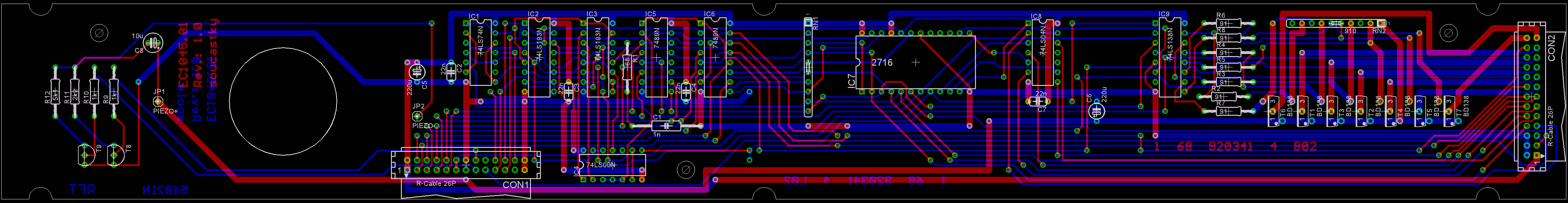

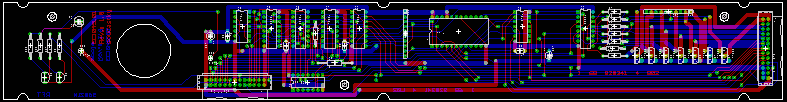

Výkres osazení elektroniky
Technického porno
|
|
|
|
|
|
|
